62
NICE - MIRIAM - CRISTAL - PRETTY - DIANA - KRISS - MARY
EN
9.4

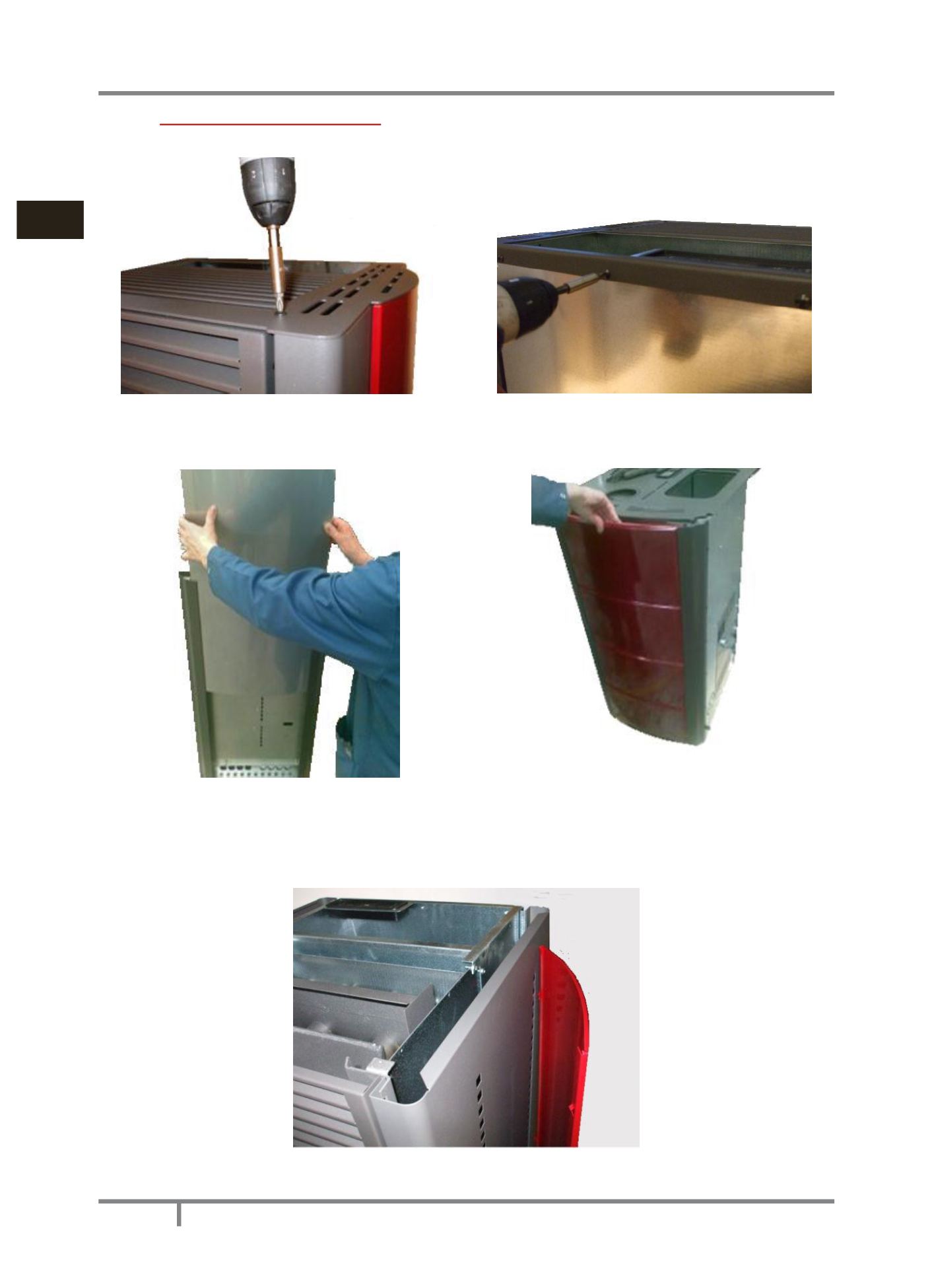

SIDE PANEL ASSEMBLY
Fig. 14 - Upper screws removal
Fig. 15 - Backward screws removal
• Remove the top cover: unscrew the 2 upper screws and the 3 backward screws (see
Fig. 14 a pag. 62
and
Fig. 15 a pag. 62
).
Fig. 16 - Side panel insertion
Fig. 17 - Ceramic panel insertion
• Insert from on high the metal side panels on the appropriate guides getting it slightly course all the way
(see
Fig. 16 a pag. 62
).
• Insert from on high the ceramic side panels on the appropriate guides getting it slightly course all the
way (see
Fig. 17 a pag. 62
).
Fig. 18 - Coloured side panel insertion
• The narrow side panel is to clasp on the squared holes (see
Fig. 18 a pag. 62
).
