NICE - MIRIAM - CRISTAL - PRETTY - DIANA - KRISS - MARY
EN

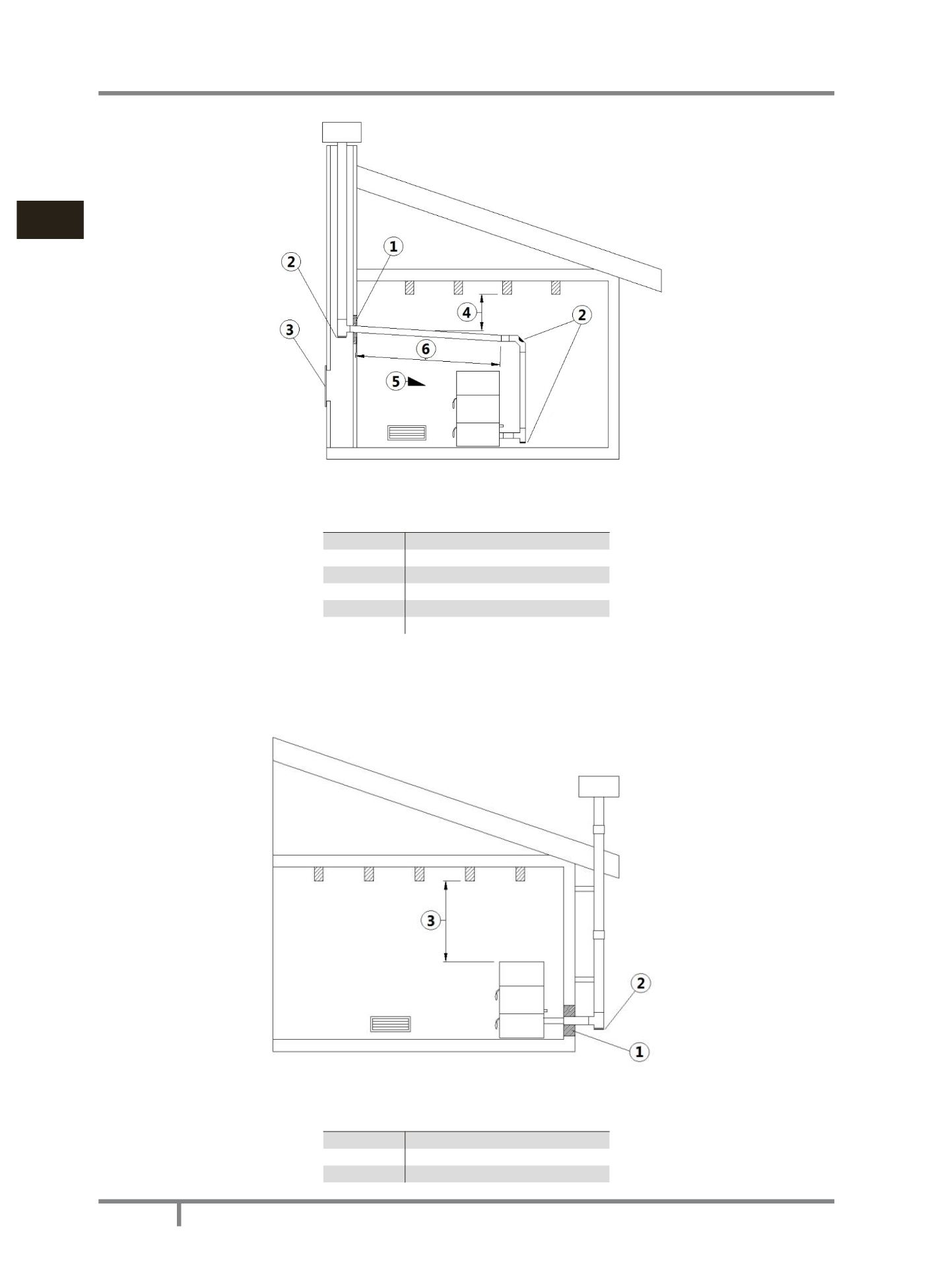

Fig. 10 - Example 2
LEGEND Fig. 10 a pag. 58
1
Insulating material
2
Inspection plug
3
Chimney inspection entrance
4
Minimum safety distance = 0,5 mt
5
Inclination ≥ 3°
6
Level section ≤ 1 mt
• Old chimney flue with an inserted pipe of minimum Ø120 mm and with an external door which enables
the chimney cleaning.
Fig. 11 - Example 3
LEGEND Fig. 11 a pag. 58
1
Insulating material
2
Inspection plug
3
Minimum safety distance = 0,5 mt
